RediFrame | RediFlex

Fixed & Adjustable Three-Sided Frames

Designed for both fixed wall and adjustable wall sizes. No exposed edges of the steel or hardware cutouts. Standard or color-matched to meet your job specifications.

RediFrame | RediFlex Provide Unlimited Options

Fixed & Adjustable Three-Sided Frames

RediFrame: Fixed Three-sided Frame
RediFlex:
Adjustable Three-sided Frame

RediFrame is designed to sleeve the wall, becoming an integral part of the wall system. In comparative impact testing, 18-gauge RediFrame withstood 850 impacts, this is over 500 more than drywall hollow metal. The difference is the Dunbarton anchoring system. Not only does RediFrame sleeve the wall, but it anchors to the wall using at least 30 fasteners through the face of the frame opening. Hollow metal anchors to the wall from the frame throat using only 6 to 8 anchors per opening that hold the frame away from the inherent strength of the wall.

Durability

Long lasting reliability, tested and proven through Level A Certification.

Security

Strengthened wall adherence is delivered through Dunbarton’s anchoring system.

Performance

Withstands resistance and impacts due to integral wall system designs.

Finishes

Flexibility to meet your needs with eight standard pre-finished colors plus unlimited customer color matches.

Fire Tested

Proven, time and again, to pass the most stringent and difficult fire tests.

Hurricane Tested

Numerous door options designed to meet and exceed the High Velocity Hurricane Zone codes in Florida and Texas.

RediFrame (Fixed)

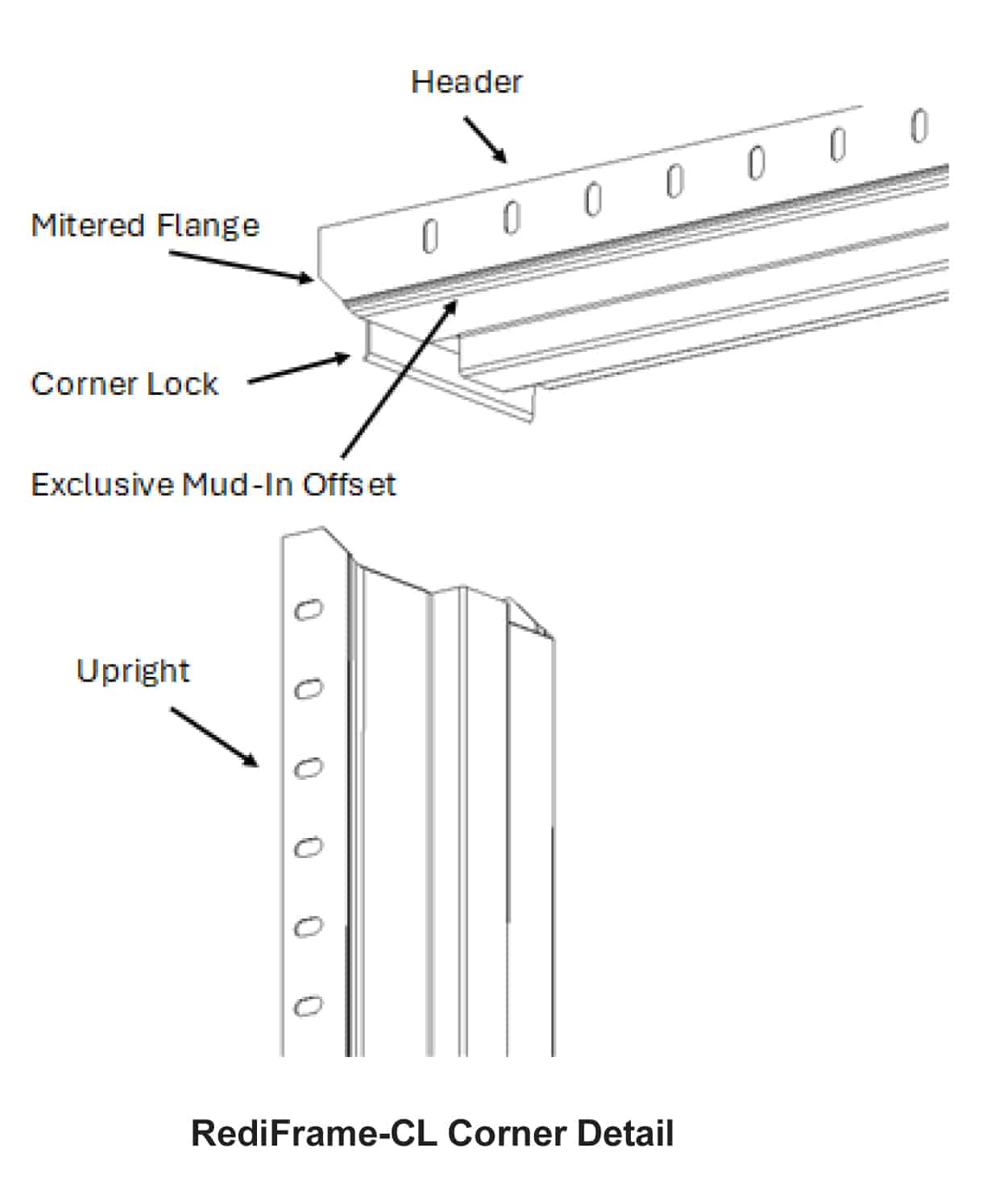

RediFrame Corner Detail

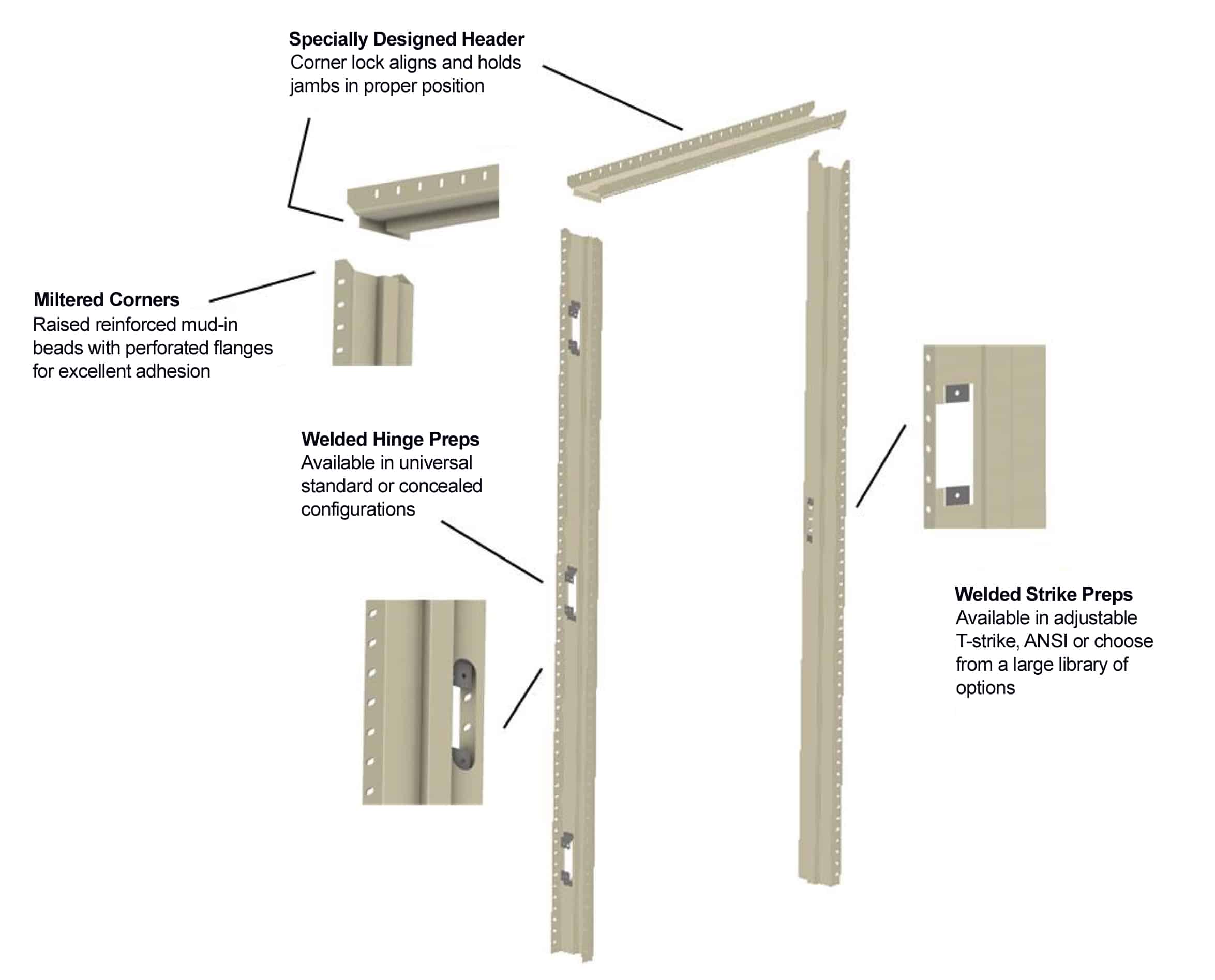

RediFrame Exposion

Specifications:

• MATERIAL:
16 gauge A40 Galvaneal, 18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• DOOR THICKNESS:
For use with 1-3/8″ or 1/-3/4” thickness doors (steel or wood).
• WALL SIZE:
2-5/8″ to 13″ fire rated, up to 15″ non-fire rated
• STOP HEIGHT:
5/8″
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• HINGE REINFORCEMENTS:
Prepared with three 3-1/2″, 4″, 4-1/2″ standard weight 14 gauge hinge reinforcements or 10 gauge or 4-1/2″ and  5″ heavyweight hinge reinforcements – see complete list on hinge prep tab
• STRIKE PREP:
Prepared with 12 gauge 2-3/4″ T-Strike Prep Standard – see a complete list of options on strike reinforcement prep tab
• FINISHING:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
Embossed 90 minutes neutral and positive pressure fire label; wood or stud steel wall constructions. See Fire Testing Tab.

RediFrame Kerf (Fixed)

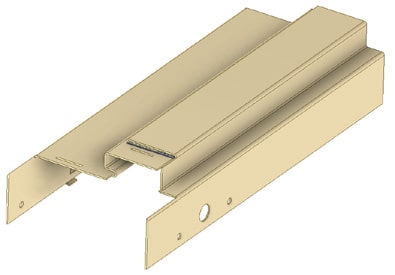

Kerf RediFrame Corner Detail

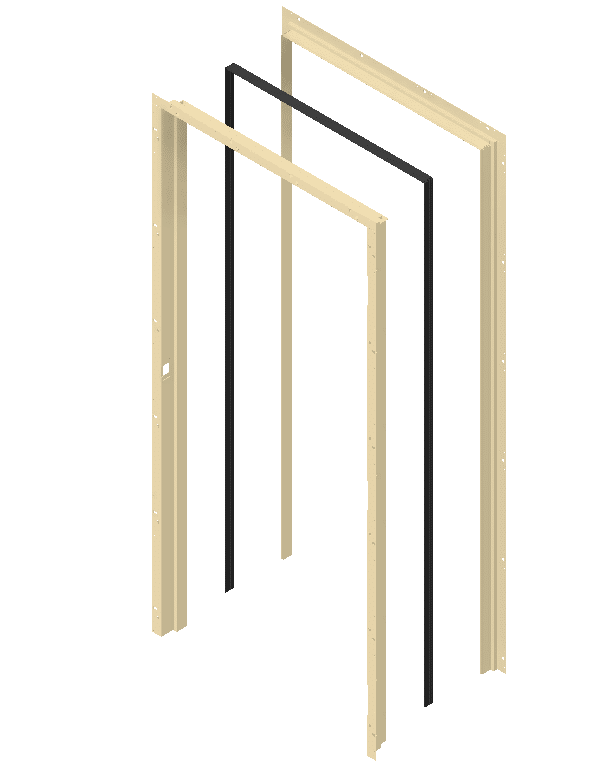

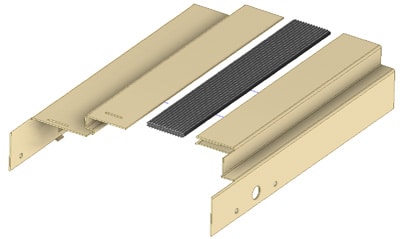

RediFrame Explosion

Specifications:

• MATERIAL:
16 gauge A40 Galvaneal, 18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• DOOR THICKNESS:
For use with 1/-3/4” thickness doors
• WALL SIZE:
4″ to 13″ fire rated, up to 15″ non-fire rated
• STOP HEIGHT:
5/8″
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• HINGE REINFORCEMENTS:
Prepared with three 4″, 4-1/2″ standard weight 14 gauge hinge reinforcements or 10 gauge for 4-1/2″ and 5″ heavyweight hinge reinforcements – see complete list on hinge prep tab
• STRIKE PREP:
Prepared with 12 gauge 4-7/8″ adjustable ASA Strike Prep Standard – see a complete list of options on strike reinforcement prep tab
• FINISHING:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
Embossed 90 minutes neutral and positive pressure fire label; wood or stud steel wall constructions. See Fire Testing Tab.

RediFrame Double Egress

Double Egress Header Stop Detail

Double Egress Explosion

Specifications:

• FRAME TYPE:
Pair
• MATERIAL:
16 gauge A40 Galvaneal, 18 gauge (standard) cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• STEEL:
Chemically treated Cold-Rolled Steel per ASTM-A366, Optional A40 Galvanneal
• WALL SIZE:
4-7/8″ to 14″ in 1/8″ increments with a maximum wall size of 13″ for fire rating
• WIDTH:
6’8″ to 8’0″ in 2″ increments
• HEIGHT:
6’8″, 7’0″, 8’0″ (Custom sizes available, see factory)
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• CASING PREP:
22 Gauge Cold-Rolled Steel per ASTM-A366 casing mitered for the head and upright jambs; same color as the frame.
Note: Aluminum or S56 Steel Colonial casing and wood casing prep are optional)
• FINISH:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
Fire Label: up to 90 Minute
UL 10B – Steel casing, S56, aluminum casing, and wood trim
UL10C – Steel casing, S56 and aluminum casing
Fire Label up to 60 minutes
UL10C – Wood trim
    See Fire Testing Tab.
• PACKING:
One set per carton
• NOTES:
1-3/4” door only.
Kerf not available.
Mylar fire label only.
Mullions not available.
Hinge preps allowed are 4”, 4-1/2” 4-1/2” Heavy, 5” and 5” Heavy.
Latching preps include surface or concealed rods with less bottom rod.

United States Patent No. 11,066,868

RediFrame Pocket Door

Pocket Door Sections

Pocket Door Explosion

Specifications:

• FRAME TYPE:
Single
• MATERIAL:
18 gauge only
• STEEL:
Chemically treated Cold-Rolled Steel per ASTM-A366
• WALL SIZE:
4-1/2″, 4-5/8″, 4-3/4″, 4-7/8″, 5-3/8″, 6-5/8″, 6-7/8″
• WIDTH:
1’6”, 1’8”, 2’0”, 2’4”, 2’6”, 2’8”, 2’10”, 3’0”, 3’4”, 3’6”, 3’8”
(Note: Header length is 1/2” LESS than nominal. Example: 3’0” = 35-1/2” header length.)
• HEIGHT:
6’8″, 7’0″, 8’0″ (Custom sizes available, see factory)
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• CASING PREP:
22 Gauge Cold-Rolled Steel per ASTM-A366 casing mitered for the head and upright jambs; same color as the frame.
Note: Aluminum or S56 Steel Colonial  casing and wood casing prep are optional)
• FINISH:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• Packing:
One set per carton.

RediFrame Borrowed Lites

Single Borrowed Lite

Multi Borrowed Lite

Specifications:

• FRAME TYPE:
Single and Multi (more than one lite), Borrowed Lite
• MATERIAL:
18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• WALL SIZE:
2-5/8″ to 13″ fire rated, up to 15″ non-fire rated
• WIDTH:
Maximum overall dimension of frame – 9’10” (contact factory for oversize)
• HEIGHT:
Maximum overall dimension of frame – 9’10” (contact factory for oversize)
• CASING PREP:
22 Gauge Cold-Rolled Steel per ASTM-A366 casing mitered at the head and upright corners. S56 Casing not available on mullions.
• GLASS STOP:
5/8” Stop cut-to-size with countersunk holes and fastening screws.
• FINISH:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
45- and 60-minute mylar (3-1/2” minimum wall size); steel or wood casing prep. See Fire Testing Tab.

RediFrame Sidelites

Single Sidelite

Multi Sidelite

Specifications:

• FRAME TYPE:
Single, Double, Half, and Full Sidelites
• MATERIAL:
18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• WALL SIZE:
2-5/8″ to 13″ fire rated, up to 15″ non-fire rated
• WIDTH:
Maximum overall dimension of frame – 9’10” (contact factory for oversize)
• HEIGHT:
Maximum overall dimension of frame – 9’10” (contact factory for oversize
• CASING PREP:
22 gauge Cold-Rolled Steel per ASTM-A366 casing mitered at the head and upright corners. S56 Casing is not available on mullions.
• GLASS STOP:
5/8” Stop cut-to-size with countersunk holes and fastening screws.
• FINISH:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
45 minute mylar (3-1/2” minimum wall size); 1-3/4″ door only;  steel or wood casing prep. See Fire Testing Tab.

RediFlex (Adjustable)

RediFlex Corner Detail

RediFlex Explosion

Specifications:

• MATERIAL:
16 gauge A40 Galvaneal, 18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• DOOR THICKNESS:
For use with 1-3/8″ or 1/-3/4” thickness doors
• WALL SIZE:
4″ to 12-1/4″ (1-1/4″ adjustments) to accommodate non-standard wall sizes
• STOP HEIGHT:
5/8″
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• HINGE REINFORCEMENTS:
Prepared with three 3-1/2″, 4″, 4-1/2″ standard weight 14 gauge hinge reinforcements or 10 gauge for 4-1/2″ and 5″ heavyweight hinge reinforcements – see complete list on hinge prep tab
• STRIKE PREP:
Prepared with 12 gauge 2-3/4″ T-Strike Prep Standard – see a complete list of options on strike reinforcement prep tab
• WEATHERSTRIP:
See the Weatherstrip tab for complete
• FINISHING:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
Embossed 90 minutes neutral and positive pressure fire label; wood or stud steel wall constructions. See Fire Testing Tab.

RediFlex Kerf (Adjustable)

Kerf RediFlex Corner Detail

RediFlex Explosion

Specifications:

• MATERIAL:
16 gauge A40 Galvaneal, 18 gauge (standard) and 20 gauge cold-rolled steel per ASTM A1008M-16 steel or A40 Galvaneal
• DOOR THICKNESS:
For use with 1-3/4” thickness doors
• WALL SIZE:
4″ to 12-1/2″ (1″ adjustments) to accomodate non-standard wall sizes
• STOP HEIGHT:
5/8″
• STOP WIDTH:
See Stop Width/Threshold Notching Guide
• HINGE REINFORCEMENTS:
Prepared with three 3-1/2″, 4″, 4-1/2″ standard weight 14 gauge hinge reinforcements or 10 gauge for 4-1/2″ and 5″ heavyweight hinge reinforcements – see complete list on hinge prep tab
• STRIKE PREP:
Prepared with 12 gauge 2-3/4″ T-Strike Prep Standard – see a complete list of options on strike reinforcement prep tab
• WEATHERSTRIP:
See the Weatherstrip tab for complete options.
• FINISHING:
Prefinished in eight standard colors. See the complete list on the Colors tab.
• FIRE RATING:
Embossed 90 minutes neutral and positive pressure fire label; wood or stud steel wall constructions. See Fire Testing Tab.

Frame Elevations

Cased Opening

Conventional

Communicating

Double Egress

Pair

Dutch

Pocket

Transon

Sidelite

Double Sidelite

Sidelite with Mullion

Partial Sidelite

Borrowed Sidelite

Borrowed Lite with Mullion

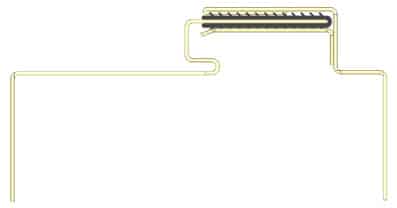

RediFrame Profiles

Cased No-Stop

1-3/4″

1-3/4″ Kerf

1-3/8″

1-3/4″ to 1-3/4″ Communicating

1-3/4″ to 1-3/8″ Communicating

Pocket Door Strike

with Pocket Door Header and Upright

Mullion

Double Egress

Double Egress Header

RediFlex Profiles

1-3/4″ RediFlex

1-3/4″ Kerf RediFlex

1-3/8″ RediFlex

Casing

Dunbarton frames and casing are designed to work together to offer the best commercial, industrial, and multi-family package. We offer casing in steel, aluminum, and S56 Colonial. However, you also have the option to use any wood trim you prefer. Additionally, all trims are available in our standard colors or custom color-matched to meet your job specifications!

Dunbarton provides casing for our frames in three styles:

Steel Casing: 1-1/2″ width

Our steel casing is 1-1/2″ is standard on all RediFrame products except Kerf RediFlex.

Aluminum Casing: 1-1/2″ width

The aluminum casing is an extruded casing designed with modern, sculpted lines in durable prefinished aluminum.

S56 True Colonial Casing: 2-1/4″ width

S56 Colonial casing is a true 2-1/4″ width casing that brings a traditional design to any project

Casing Styles

S56 Colonial Casing

Profile Drawing with Dimensions

Casing Installation

Our casing is easy to install but every so often it is necessary to uninstall and adjust. We recommend our Casing Tool available to order here. Please follow the instructions as indicated on the video!

Casing Installation Attachments

Casing Corner Clips

Dunbarton’s Casing Corner Clips are designed to hide surface distortion and gaps. They are also designed to allow the casing to be removable in case of any changes. When installing casing on RediFrame and RediFlex frames, the supplied clips are designed to snap in place into both ends of the header casing. After installed, the clips help ensure the proper alignment of the miter between the header casing and jamb casing on our steel, aluminum, and S56 Colonial casing.

Note: The RediFrame system does not require crimping to hold the clip in place.  The combination of the casing, frame lance, and clip design also makes sure the casing does not rattle during the operation of the door.

Aluminum & Steel Casing Corner

S56 Casing Corner

Casing Retainer Clip

Aluminum & Steel Casing Corner

Weatherstrip

Kerf Weatherstriping

Dunbarton’s 90-minute fire-rated weatherstripping is available in three colors: white, brown, and beige. The easy-to-install kerf weatherstripping comes ready to install on-site or is available pre-installed. Be sure to specify weatherstripping when ordering kerf frames.

View Complete Fire-rating Information

Kerf Weatherstrip Sizes Available

Weatherstrip 500 Reach

Weatherstrip 650 Reach

Weatherstrip 750 Reach

Weatherstrip Colors

White

Brown

Beige

Thresholds

The purpose of a threshold is to close the gap between the bottom of a door and the floor. Thresholds are used with door bottoms and weatherstripping to seal the opening, preventing air, rain, and snow from entering.  Dunbarton has four standard styles with two extenders for the fixed inswing, with other options available.

Product Specifications

FASTENERS: #10 x 1-1/2” flat head Phillips screws, provided. Other screw types and anchors are available upon request.
FINISH: Mill
MATERIAL: 6063-T6 Aluminum
WIDTH: See profile Tech Sheet for details

Kerf RediFlex: Threshold Notching

  • Over 23 threshold prep notches on the actual thresholds.

RediFlex Frame: Notching for Sill – Standard Guides Below

A complete guide for each style below in yellow.

  • Notch for 5 or 6 degrees
  • ADA notch flat 1/2″
  • 7/8″ marble notch

RediFrame: Field Notching for Sill – Click Guide Below

  • RediFrame is not available pre-notched but the chart for on-site notching is available by download here.Field Notching Guide



Thresholds

ADA Saddle Sill

Notching Guide

ADA Tile Face

Notching Guide

Bumper Outswing Sill

Notching Guide

Fixed Inswing Sill

Notching Guide

3/4″ Extender for Fixed Inswing Sill

Notching Guide

2″ Extender for Fixed Inswing Sill

Notching Guide

Colors

Colors may vary by monitor! Color chips are available upon request. Click here to order.

Standard Colors

RediFrame Brown

Bright White

Ivory

Premium Optional Colors*

Mojave Brown

Black

Light Gray

Tan

Alusteel

*Standard optional colors include an upcharge.

Standard Optional Colors**

Prime Gray**

**Prime gray not intended for top coat

Digital Color Chart

Color Matching

Dunbarton is able to custom color match. Submit a color chip for matching. Consult the factory for pricing and lead times. Dunbarton is able to color match any Benjamin Moore™ or Sherwin Williams™ Color.
Below is a list of specific colors recently matched.



SHERWIN WILLIAMS & BENJAMIN MOORE NUMBERS COLOR SHADE CALDWELL NUMBERS
WHITES AND WHITE SHADES
SW6385 DOVER WHITE 721-5001
SW7012 CREAMY 721-5144
SW0050 CLASSIC LIGHT BUFF 721-5164
SW6119 ANTIQUE WHITE 721-5177
SW7006 EXTRA WHITE 721-5314
SW7005 PURE WHITE 721-5493
SW6140 MODERATE WHITE 721-5876
SW7102 WHITE FLOWER 721-6310
SW7056 RESERVED WHITE 721-6625
SW7627 WHITE HERON 721-6963
SW7757 HIGH REFLECTIVE WHITE 721-7085
SW7009 PEARLY WHITE 721-7155
SW7035 AESTHETIC WHITE 721-7187
SW6000 SNOWFALL 721-7221
SW7004 SNOWBOUND 721-7240
SW7661 REFLECTION 721-7307
SW6168 MODERNE WHITE 721-7332
SW7042 SHOJI WHITE 721-6574
SW7671 ON THE ROCK 721-7612
SW7551 GREEK VILLA 721-7748
SW2423 POLAR WHITE 721-7878
SW7103 WHITETAIL 721-7899
SW0053 PORCELAIN 721-7920
BM915 CAMEO WHITE 721-6528
BM OC-66 SNOW WHITE 721-6449
BM OC-38 ACADIA WHITE 721-6586
BM968 DUNE WHITE 721-6588
BM OC-17 WHITE DOVE 721-6779
BM 0C-141 CHINA WHITE 721-6821
BM 0C-118 SNOWFALL WHITE 721-6954
BM 2121-70 CHANTILLY LACE 721-6990
BM AC-41 ACADIA WHITE 721-6998
BM OC-69 WHITE OPPULENCE 721-7097
BM2122-70 SNOW WHITE 721-7131
BM OC-25 CLOUD COVER 721-7225
BM OC-138 WHITE DRIFTS 721-7411
BM2145-70 COTTON BALLS 721-7487
BM OC-149 DECORATORS WHITE 721-7650
BM OC-62 BABY’S BREATH 721-7653
BM2146-70 AURA BAVARIAN CREAM 721-7684
GRAY AND GRAY SHADES
SW7016 MINDFUL GRAY 723-5915
SW7019 GAUNTLET GRAY 723-6031
SW7065 ARGOS 723-6502
SW7030 ANEW GRAY 723-6128
SW7675 SEALSKIN 723-6274
SW7029 AGREEABLE GRAY 723-6424
SW7044 AMAZING GRAY 723-6544
SW7018 DOVETAIL 723-6656
SW7076 CYBERSPACE GRAY 723-6659
SW7015 REPOSE GRAY 723-6690
SW7023 REQUISITE GRAY 723-6794
SW7069 IRON ORE GRAY 723-6825
SW7504 KEYSTONE GRAY 723-6828
SW7024 FUNCTIONAL GRAY 723-6899
SW7624 SLATE TILE 723-6958
SW7674 PEPPERCORN 723-6969
SW8302 GREAT GRAPHITE 723-6979
SW7022 ALPACA 723-6995
SW7068 GRIZZLE GRAY 723-7058
SW2849 WESTCHESTER GRAY 723-7119
SW7075 WEB GRAY 723-7164
SW7673 PEWTER CAST 723-7177
SW2848 ROYCROFT PEWTER 723-7182
SW6071 POPULAR GRAY 723-7252
SW7043 WORLDLY GRAY 723-7264
SW7051 ANALYTICAL GRAY 723-7270
SW6001 GRAYISH 723-7324
SW9170 ACIER 723-7311
SW9171 FELTED WOOL 723-7315
SW6001 GRAYISH 723-7324
SW7641 COLONNADE GRAY 723-7362
SW7017 DORIAN GRAY 723-7552
SW7672 KNITTING NEEDLES 723-7573
SW7634 PEDIMENT 723-7582
SW7066 GRAY MATTERS 723-7599
SW9162 AFRICAN GRAY 723-7682
SW9168 ELEPHANT EAR 723-7707
SW7658 GRAY CLOUDS 723-7755
SW7654 LATTICE 723-7814
SW0037 MORRIS ROOM GRAY 723-7845
SW6236 GRAYS HARBOR 723-7848
SW7644 GATEWAY GRAY 723-7857
SW7663 MONORAIL SILVER 723-7891
BM217-40 DRIFTWOOD 723-4706
BM HC-166 KENDALL CHARCOAL 723-6395
BM2121-20 STEEL WOOL 723-6636
BM1462 GRAY MOUNTAIN 723-6887
BM2124-10 WROUGHT IRON 723-6992
BM AC-27 GALVESTON GRAY 723-7013
BM2024-60 LEMONADE 721-7113
BM OC-26 SILVER SATIN 723-7040
BM2138-60 GRAY CASHMERE 723-7138
BM1603 GRAPHITE 723-7191
BM2134-30 IRON MOUNTAIN 723-7206
BM AF-700 STORM 723-7227
BM1616 STORMY SKY 723-7266
BM2108-50 SILVER FOX 723-7274
BM1475 GRAYSTONE 723-7341
BM2112-50 STORMY MONDAY 723-7343
BM CC-636 MOUNTAIN AIR 723-7419
BM1610 FRENCH BERET 723-7421
BM1595 ROCKY COAST 723-7497
BM 179 PLATINUM GRAY 723-7672
BM1557 SILVER SONG 723-7713
BM2134-50 GULL WING GRAY 723-7720
YELLOWS AND YELLOW SHADES
SW7732 LEMON GRASS 724-7618
SW6699 CRISPY GOLD 724-7716
BM239 IVORY PORCELAIN 724-6817
ORANGE
SW6328 FIREWEED 725-7636
BEIGES AND BROWNS AND BROWN SHADES
SW7008 ALABASTER 726-4960
SW6117 SMOKY TOPAZ 726-5122
SW7048 URBANE BRONZE 726-5451
SW7038 TONY TAUPE 726-5487
SW6006 BLACK BEAN 726-5528
SW6142 MACADAMIA 726-5587
SW6090 JAVA 726-5703
SW6121 WHOLE WHEAT 726-5705
SW7013 IVORY LACE 726-5750
SW7011 NATURAL CHOICE 726-5754
SW7031 MEGA GREIGE 726-5760
SW7506 LOGGIA 726-5770
SW7046 ANONYMOUS 726-5774
SW6104 KAFFEE 726-5801
SW6102 PORTABELLO 726-5922
SW6136 HARMONIC TAN 726-6043
SW7049 NUANCE 726-6101
SW7036 ACCESSIBLE BEIGE 726-6145
SW6076 TURKISH COFFEE 726-6225
SW7693 STONEBRIAR 726-6303
SW7631 CITY LOFT 726-6308
SW6041 OTTER 726-6328
SW7067 CITYSCAPE 726-6344
SW7026 GRIFFIN 726-6352
SW6068 BREVITY BROWN 726-6386
SW7047 PORPOISE 726-6442
SW6070 HERON PLUME 726-6458
SW7037 BALANCED BEIGE 726-6473
SW6138 ARTIFACT 726-6541
SW6150 UNIVERSAL KHAKI 726-6606
SW6083 SABLE 726-6679
SW7025 BACKDROP 726-6792
SW7063 PERFECT GREIGE 726-6832
SW6078 REALISTIC BEIGE 726-6889
SW7511 BUNGALOW BEIGE 726-6891
SW6101 SAND OF TIME 726-6893
SW7633 TAUPE TONE 726-7000
SW8025 PALE BROWN 726-7015
SW7642 PAVESTONE 726-7060
SW1028 KOHL 726-7067
SW2735 ROCKWEED 726-7091
SW9084 COCOA WHIP 726-7129
SW7032 WARM STONE 726-7302
SW6395 ALCHEMY 726-7334
SW7533 KHAKI SHADE 726-7382
SW6103 TEA CHEST 726-7548
SW9166 DRIFT OF MIST 726-7570
SW7618 DEEP SEA DIVE 726-7645
SW7509 TIKI HUT 726-7688
SW7508 TAVERN TAUPE 726-7690
SW6097 STURDY BROWN 726-7700
BM 0C-10 WHITE SAND 726-5520
BM HC-80 BLEEKER BEIGE 726-6360
BM 1527 GOING TO THE CHAPEL 726-6372
BM2097-10 TOASTED BROWN 726-6619
BM AF-685 THUNDER 726-6643
BM2106-10 JAVA 726-6695
BM1092 GLAZED PEAR 726-6697
BM HC-76 DAVENPORT TAN 726-6705
BM2114-10 BITTERSWEET CHOCOLATE 726-6781
BM860 APPARITION 726-7035
BM1543 PLYMOUTH ROCK 726-7050
BMOC6 FEATHER DOWN 726-7150
BM OC-32 TAPESTRY BEIGE 726-7384
BM2103-10 NATURAL BROWN 726-7393
BM HC-92 WHEELING NEUTRAL 726-7661
BM2111-20 GRIZZLY BEAR BROWN 726-7678
BM972 ALASKAN SKIES 726-7746
GREENS
SW6720 PARADISE 727-7262
SW6488 GRAND CANAL 727-7765
SW6209 RIPE OLIVE 727-7837
BM145 AVOCADO 727-7006
BLUES
SW6230 RAIN STORM 728-7313
SW7604 SMOKEY BLUE 728-7524
SW6244 NAVAL 728-7655
SW6965 HYPER BLUE 728-7904
SW9178 IN THE NAVY 728-7806
BMCC-392 NORTH SEA 728-7115
BM HC-148 JAMESTOWN BLUE 728-7405
BM 16666 IN THE MIDNIGHT HOUR 728-7409
BM2135-40 PROVINCE BLUE 728-7491
BLACKS
SW6258 TRICORN BLACK 729-5567
SW7020 BLACK FOX 729-6064
SW6991 BLACK MAGIC 729-6910
SW6993 BLACK OF NIGHT 729-7604
SW6990 CAVIAR 729-7850
BM2130-30 ALMOST BLACK 729-7489
BM2128-10 BLACK BEAUTY 729-7811

Technical Information

For a complete listing of technical data, click here.
For a complete listing of MSDS, click here.

Field Painting Instructions

RediFrame | RediFlex Strikes

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

3-1/2" Hinges (1 or 2 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ or 5/8″ radius

3-1/2" Hinges (1-1/2 or 3 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ or 5/8″ radius

3-1/2" Hinges (2 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4" Hinges (1-1/2 or 3 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4" Hinges (2 or 4 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4-1/2" Hinges (1-1/2 or 3 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134 for standard weight hinge

Template Hinge Pattern Only:
.180″ for heavy weight hinge
Template hinge pattern only

4-1/2" Hinges (2 or 4 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134 for standard weight hinge

Template Hinge Pattern Only:
.180″ for heavy weight hinge
Template hinge pattern only

Dutch Door Pair: 3-1/2" Hinges (2 Pair) for 1-3/8" Door

Dutch

Door Information

Hinge Backset:
3/16″

Hinge Depth:
per template

Template Hinge Pattern Only:
1/4″  or 5/8″ radius

Dutch Door Pair: 4" Hinges (2 Pair) for 1-3/4" Door

Dutch

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134″ for standard weight hinge

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

Dutch Door Pair: 4-1/2" Hinges (2 Pair) for 1-3/4" Door

Dutch

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134″ for standard weight hinge

Template Hinge Pattern Only:
.180 for heavy weight hinge
Template hinge pattern only

RediFrame | RediFlex Strikes

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Strike Finishes

Colors may vary by screen!

Brass
US3

Oil Rubbed Bronze
US10B

Flat Black
US19

Dull Chrome
US26

RediFrame | RediFlex Strikes

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Strike Prep Standard

SIZE TYPE FRAME DEPTH DOOR SIZE REDIFRAME KERF RF REDIFLEX KERF RFX TEMPLATE
1-1/4” X 2-3/4” “T” Strike Emboss (1-3/8” door) .110 1-3/8″ ____ ____ Download
1-1/4” X 2-3/4” “T” Strike Emboss (1-3/4” door) .110 1-3/4″ Download
1-1/4” X 4-7/8” “ASA” Adjustable Strike Emboss (1-3/4” door) .125 1-3/4″ * * * * Download
1-1/8” X 2-3/4” Deadbolt Strike Emboss .110 1-3/4″ ** ** ** ** Download
1-1/2” X 2-1/4” Full Lip Strike .110 1-3/4″ * * * * Download

* = Option/NC **=Option/Upcharge

RediFrame | RediFlex Strikes

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Electric Strike Prep

TYPE DESCRIPTION TEMPLATE
ELECTRIC STRIKE Adams Rite 74R1 Supply from Manuf.
ELECTRIC STRIKE Adams Rite 7140 Supply from Manuf.
ELECTRIC STRIKE Adams Rite 7240 Supply from Manuf.
ELECTRIC STRIKE Dorma ES72 Supply from Manuf.
ELECTRIC STRIKE Hager 2925 Supply from Manuf.
ELECTRIC STRIKE HES 1006 Supply from Manuf.
ELECTRIC STRIKE HES 4500 Supply from Manuf.
ELECTRIC STRIKE HES 5000 Supply from Manuf.
ELECTRIC STRIKE HES 5200 Supply from Manuf.
ELECTRIC STRIKE HES 8000 Supply from Manuf.
ELECTRIC STRIKE 8300 Supply from Manuf.
ELECTRIC STRIKE HES Vista Supply from Manuf.
ELECTRIC STRIKE Locktronics CS450/750 Supply from Manuf.
ELECTRIC STRIKE RCI F4111 Supply from Manuf.
ELECTRIC STRIKE Trine EN400 Supply from Manuf.
ELECTRIC STRIKE Trine 4200 Supply from Manuf.
ELECTRIC STRIKE Von Duprin 4200 Supply from Manuf.
ELECTRIC STRIKE Von Duprin 4200 Supply from Manuf.
ELECTRIC STRIKE Von Duprin 5100 Supply from Manuf.

RediFrame | RediFlex Hinges

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

3-1/2" Hinges (1 or 2 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ or 5/8″ radius

3-1/2" Hinges (1-1/2 or 3 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ or 5/8″ radius

3-1/2" Hinges (2 Pair) for 1-3/8" Doors

Single

Double

Door Information

Hinge Backset:
3/16″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4" Hinges (1-1/2 or 3 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4" Hinges (2 or 4 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
Per Template

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

4-1/2" Hinges (1-1/2 or 3 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134 for standard weight hinge

Template Hinge Pattern Only:
.180″ for heavy weight hinge
Template hinge pattern only

4-1/2" Hinges (2 or 4 Pair) for 1-3/4" Doors

Single

Double

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134 for standard weight hinge

Template Hinge Pattern Only:
.180″ for heavy weight hinge
Template hinge pattern only

Dutch Door Pair: 3-1/2" Hinges (2 Pair) for 1-3/8" Door

Dutch

Door Information

Hinge Backset:
3/16″

Hinge Depth:
per template

Template Hinge Pattern Only:
1/4″  or 5/8″ radius

Dutch Door Pair: 4" Hinges (2 Pair) for 1-3/4" Door

Dutch

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134″ for standard weight hinge

Template Hinge Pattern Only:
1/4″ only
5/8″ radius hinge prep available in template or non-template hole pattern; specify hinge when ordering

Dutch Door Pair: 4-1/2" Hinges (2 Pair) for 1-3/4" Door

Dutch

Door Information

Hinge Backset:
1/4″

Hinge Depth:
.134″ for standard weight hinge

Template Hinge Pattern Only:
.180 for heavy weight hinge
Template hinge pattern only

RediFrame | RediFlex Hinges

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Strike Finishes

Colors may vary by screen!

Brass
US3

Oil Rubbed Bronze
US10B

Flat Black
US19

Dull Chrome
US26

RediFrame | RediFlex Hinges

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft, etc.), or custom locations.

Hinge Prep Standard

SIZE TYPE FRAME DEPTH DOOR THICKNESS REDIFRAME KERF RF REDIFLEX KERF RFX TEMPLATE
3-1/2″ 1/4″ Radius Corner (1-3/8″ door) .120 1-3/8″ ________ Download
3-1/2″ Square* .120 1-3/8″ Download
3-1/2″ 5/8″ Radius Corner (1-3/8″ door) .120 1-3/8″ * ________ * ________ Download
4″ 1/4″ Radius Corner .125 1-3/4″ Download
4″ 5/8″ Radius UHP .115 1-3/4″ Download
4″ UHP #5: Taylor|Perma Door, Therma Tru, Jeld-Wen, Ceco .115 1-3/4″ Download
4″ UHP #6: Stanley, Masonite, Challenge, Castlegate .125 1-3/4″ Download
4-1/2″ Square Corner Std. Weight .134 1-3/4″ Download
4-1/2″ Square Corner Heavy Weight .180 1-3/4″ ** ** ** ** Download
5″ Square Corner Std. Weight .145 1-3/4″ ** ** ** ** Download
5″ Square Corner Heavy Weight .190 1-3/4″ ** ** ** ** Download

*upcharge

RediFrame | RediFlex Hinges

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Hinge Prep Continuous Reinforcement

NAME STYLE TEMPLATE
Continuous Hinge Reinforcement Full Length Supply from Manuf.​

RediFrame | RediFlex Hinges

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Frames may be prepped to RF locations and other manufacturer’s locations (Ex: Ceco, Curries, Steelcraft), or custom locations.

Hinge Prep Electric

SIZE NAME STYLE TEMPLATE
4″ Square Standard Weight Electric Hinge Hager Supply from Manuf.​
4-1/2″ Square Standard Weight Electric Hinge Hager Supply from Manuf.​
4-1/2″ Square Standard Weight Electric Hinge Ives Supply from Manuf.​
4-1/2″ Square Standard Weight Electric Hinge McKinney-Single Pole Supply from Manuf.​
4-1/2″ Square Standard Weight Electric Hinge McKinney-Dual Pole Supply from Manuf.​
4-1/2″ Square Standard Weight Electric Hinge Stanley Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge Hager Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge Ives Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge McKinney-Single Pole Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge McKinney-Dual Pole Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge Stanley Supply from Manuf.​
4-1/2″ Square Heavy Weight Electric Hinge Hager Supply from Manuf.​

Hinge Prep EPT

NAME STYLE TEMPLATE
ABH EPT ABH PT105 Supply from Manuf.​
IVES EPT Ives EPT10 Supply from Manuf.​

T-Strike Roller Latch Flush Bolt

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Header Prep: T-Strike | Roller Latch | Flush Bolt

TYPE DESCRIPTION SINGLE PAIR TEMPLATE
T-STRIKE T-Strike (1-3/4″ door) ____ Download
T-STRIKE T-Strike (1-3/8″ door) Download
ROLLER LATCH Rockwood 911 Roller Latch * * Download
FLUSH BOLT Reversible Flush Bolt ** ** Download
FLUSH BOLT DCI 960 Flush Bolt Supply from Manuf.
FLUSH BOLT DON-JO 1557 Flush Bolt Supply from Manuf.
FLUSH BOLT Hager 282D Flush Bolt Supply from Manuf.
FLUSH BOLT Hager 283D Flush Bolt Supply from Manuf.
FLUSH BOLT Hager 292D Flush Bolt Supply from Manuf.
FLUSH BOLT Rockwood 555 Flush Bolt Supply from Manuf.
FLUSH BOLT Sargent 650 Flush Bolt Supply from Manuf.

* Default
** Available in RediFrame or RediFlex

REDIFRAME | REDIFLEX HEADER PREP

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Header Prep:Concealed Vertical Rod

TYPE DESCRIPTION SINGLE PAIR TEMPLATE
CVR Dorma 418 ____ Download
CVR Falcon 4188 Supply from Manuf.
CVR Falcon 25 * * Supply from Manuf.
CVR Hager 4500 ** ** Supply from Manuf.
CVR Von Duprin 338 2-14″ CL Supply from Manuf.
CVR Von Duprin 338 2-13/16″ CL Supply from Manuf.

* Default
** Available in RediFrame or RediFlex

RediFrame | RediFlex Header Prep

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Header Prep: Overhead Stops

TYPE DESCRIPTION SINGLE PAIR TEMPLATE
OVERHEAD STOP ABH 1000 ____ Supply from Manuf.
OVERHEAD STOP ABH 1000SL Supply from Manuf.
OVERHEAD STOP Glynn Johnson 100 * * Supply from Manuf.
OVERHEAD STOP Glynn Johnson 100CJ ** ** Supply from Manuf.
OVERHEAD STOP Glynn Johnson 410 Supply from Manuf.
OVERHEAD STOP Hager 6000 Supply from Manuf.
OVERHEAD STOP Hager 7000 Supply from Manuf.
OVERHEAD STOP Rixon Series 1 Supply from Manuf.
OVERHEAD STOP Rixon Series 2 Supply from Manuf.
OVERHEAD STOP Rixon Series 5 Supply from Manuf.
OVERHEAD STOP Rixon Series 6 Supply from Manuf.
OVERHEAD STOP Rixon Series 6 ADJ Supply from Manuf.
OVERHEAD STOP Rockwood 1100 Supply from Manuf.
OVERHEAD STOP Rockwood 1100SL Supply from Manuf.
OVERHEAD STOP Rockwood 14000 Supply from Manuf.

* Default
** Available in RediFrame or RediFlex

RediFrame | RediFlex Header Prep

Note: Dunbarton only supplies the following strikes: T-strike, Deadbolt strike, Flushbolt strike, and Rollerlatch strike.

Header Prep: Welded Parallel Arms | Concealed Closers

TYPE DESCRIPTION SINGLE PAIR TEMPLATE
WELD PAR ARM Single ____ Supply from Manuf.
WELD PAR ARM Pair Supply from Manuf.
WELD PAR ARM Pair with 1 SVR * * Supply from Manuf.
WELD PAR ARM Pair with 2 SVR-2DE ** ** Supply from Manuf.
CONCEALED CLOSERS Dorma 912 Single | Pair Download
CONCEALED CLOSERS Dorma 712 Single | Pair Supply from Manuf.
CONCEALED CLOSERS Glen John 450 Single | Pair Supply from Manuf.
CONCEALED CLOSERS ITS96 Single | Pair Supply from Manuf.
CONCEALED CLOSERS LCN 6030 Single Supply from Manuf.

* Default
** Available in RediFrame or RediFlex

RediFrame | RediFlex - Rough Single

RediFrame | RediFlex - Rough Pair

RediFrame | RediFlex - Rough Side

RediFrame | RediFlex - Rough Lite

RediFrame | RediFlex - Rough Doors

RediFrame | RediFlex - Rough Masonry

HANDING GUIDE

RediFrame | RediFlex Provide Unlimited Options - Project Examples

GALLERY

DUNBARTON WILL TAKE ON OPENING CHALLENGES

LEARN MORE
